Grassland
Cousins of Emneth offers a range of specialised Grassland equipment designed to enhance efficiency and improve the quality of your fields. Our Sward Lifters and Ballast Rolls are engineered for farmers who require durable, effective solutions to maintain and optimise their grassland. From reducing soil compaction to ensuring uniform results across your land, our equipment meets the rigorous demands of modern farming. Below, you’ll find detailed specifications for our Grassland products.

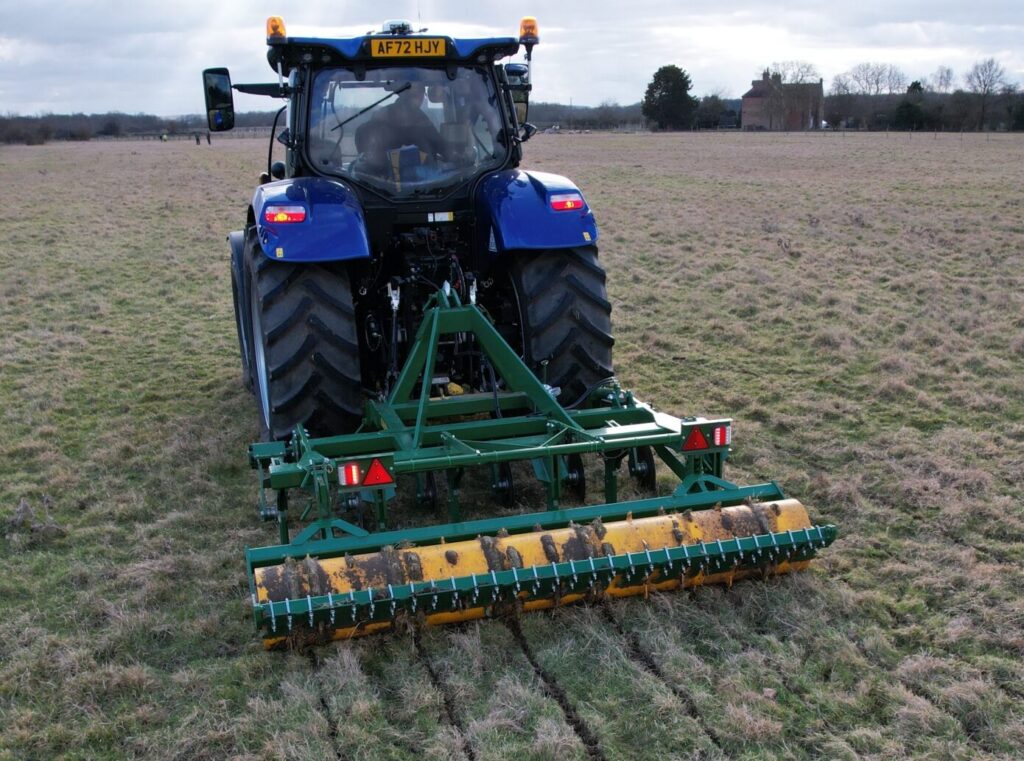

Sward Lifter
Less Lift Low Disturbance Loosener is ideally suited to grassland applications.
Available in 3m, 4m, 5m, and 6m working widths.
All aspects of the new Less Lift low disturbance loosener have been designed to cause minimal soil disturbance. Front cutting discs run ahead of the Step Change tine which has all soil-contacting faces running vertical to give neither downward pressure nor upward disturbance.
The rear Shark Fin roller has reduced surface disturbance by 30% while teeth have a closing action to the tine marked slot.
LESS disturbance
LESS lift
LESS mixing
LESS moisture loss
LESS fuel consumption
LESS carbon release
Features
- Features 3m Rigid & 4m, 5m, 6m folding models
- Front Cutting Discs hydraulically adjustable on the move
- Staggered tines with 500mm spacing
- Working Depth - 8" - 12"
| Working Width | Transport Width | No. Tines |
|---|---|---|
| 3m | 3m | 6 |
| 4m | 2.5m | 8 |
| 5m | 2.5m | 10 |
| 6m | 2.5m | 12 |

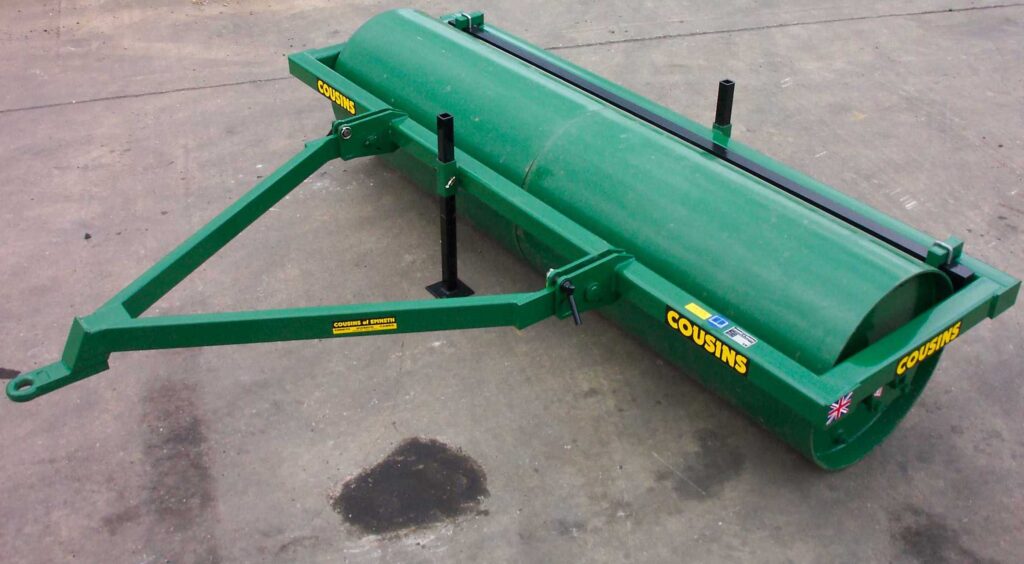

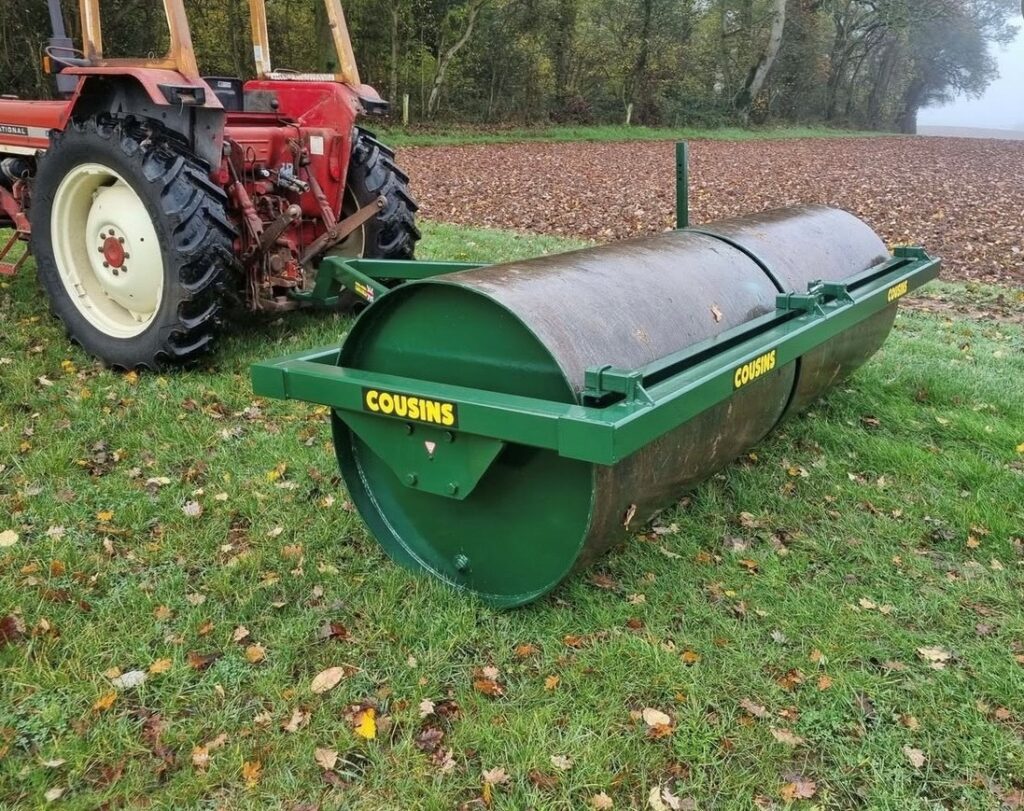

Ballast Rolls - Rigid
These single track rolls are simple & robust with models from 1.25m to 4.25m working widths, Models above 3m include centre bearings. Tube options are 30″ (750mm) or 39″ (1m). These rolls are intended to be ballasted with water.
Single Bank Rigid Models
| Working Width | 30″ (750mm) Ø Tube | 39″ (1m) Ø Tube |
|---|---|---|
| 1.25m | Unladen (kg): 400 Ballasted (kg): 935 | Unladen (kg): Ballasted (kg): |
| 1.5m | Unladen (kg): 445 Ballasted (kg): 1130 | Unladen (kg): Ballasted (kg): |
| 2.5m | Unladen (kg): 840 Ballasted (kg): 1910 | Unladen (kg): 1110 Ballasted (kg): 2675 |
| 3m | Unladen (kg): 950 Ballasted (kg): 2320 | Unladen (kg): 1315 Ballasted (kg): 3330 |
| 3.35m (with center bearings) | Unladen (kg): 1045 Ballasted (kg): 2550 | Unladen (kg): 1446 Ballasted (kg): 3660 |
| 3.65m (with center bearings) | Unladen (kg): 1140 Ballasted (kg): 2782 | Unladen (kg): 1577 Ballasted (kg): 3993 |
| 4m (with center bearings) | Unladen (kg): 1235 Ballasted (kg): 3014 | Unladen (kg): 1708 Ballasted (kg): 4325 |
| 4.25m (with center bearings) | Unladen (kg): 1330 Ballasted (kg): 3245 | Unladen (kg): 1839 Ballasted (kg): 4658 |

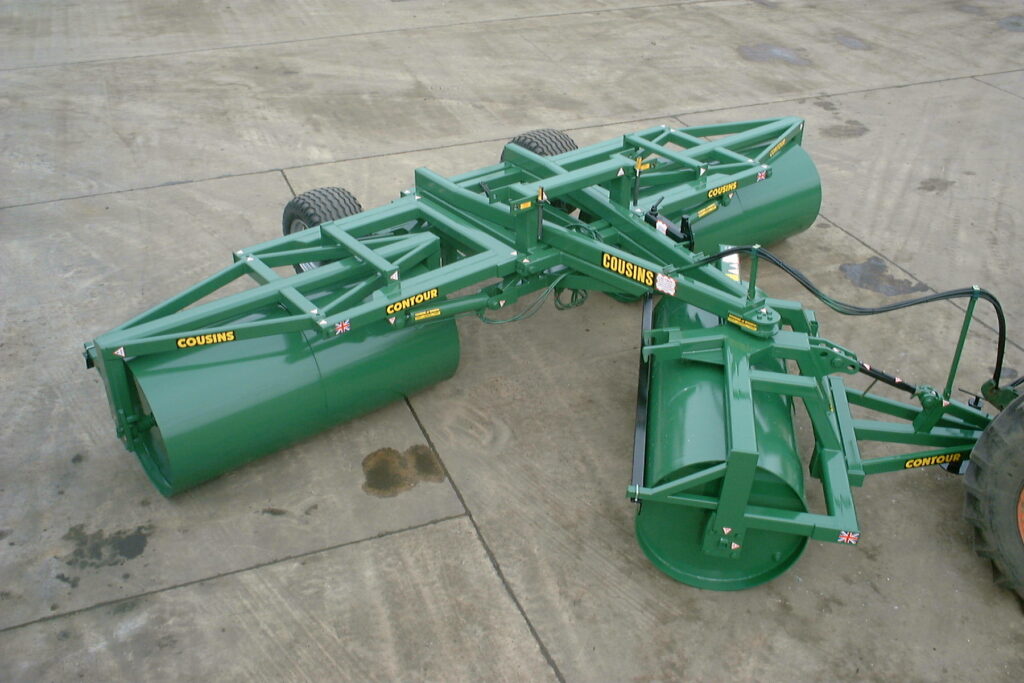

Ballast Rolls - Contour Folding
The folding Ballast Rolls use the articulated ‘Contour’ Roll frame, traditionally used for Cambridge Roll rings (incorporating the unique patented ball joint and transport system). This enables the front and rear gangs to operate independently of each other, eliminating pressure points across the rolls, reducing scuffing when turning corners, and enabling the machine to be used in tight spaces.
These rolls are intended to be filled with water and feature 400/60-15.3 tyres.
Articulated 'Contour' Models
| Working Width | 24″ (610mm) Ø Tube | 30″ (750mm) Ø Tube | 36″ (914mm) Ø Tube | 39″ (1m) Ø Tube |
|---|---|---|---|---|
| 21′ (6.4m) |
Unladen (kg): 3070 Ballasted (kg): 4710 |
Unladen (kg): 3310 Ballasted (kg): 6050 |
Unladen (kg): – Ballasted (kg): – |
Unladen (kg): – Ballasted (kg): – |
| 24′ (7.32m) |
Unladen (kg): 3390 Ballasted (kg): 5270 |
Unladen (kg): 3660 Ballasted (kg): 6750 |
Unladen (kg): – Ballasted (kg): – |
Unladen (kg): – Ballasted (kg): – |
| 27′ (8.23m) |
Unladen (kg): 3700 Ballasted (kg): 5700 |
Unladen (kg): 4020 Ballasted (kg): 7500 |
Unladen (kg): – Ballasted (kg): – |
Unladen (kg): – Ballasted (kg): – |
| 30′ (9.14m) |
Unladen (kg): 4000 Ballasted (kg): 6130 |
Unladen (kg): 4375 Ballasted (kg): 8150 |
Unladen (kg): – Ballasted (kg): – |
Unladen (kg): – Ballasted (kg): – |
Grass Harrow
Information to follow.
